RBF - Ogiva a Testa Raggiata

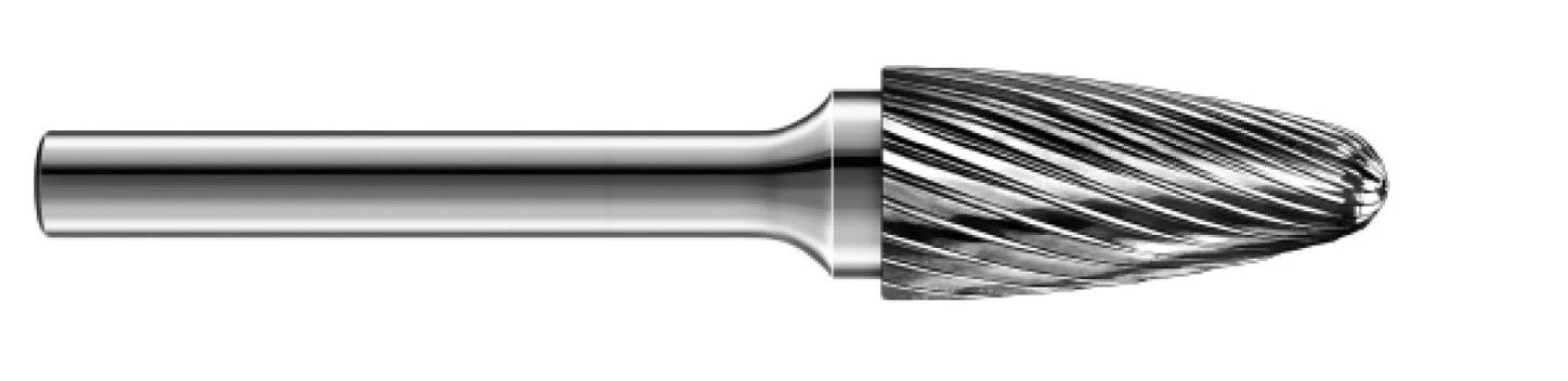

La lima rotativa Forma RBF (ad albero a testa tonda) si distingue per il suo caratteristico profilo ogivale che sfocia in una punta dolcemente arcuata. Questa specifica conformazione geometrica la rende formidabile per intervenire su profili interni curvilinei e per la levigatura di raccordi stretti. È l’utensile d'elezione quando si devono eliminare bave di fusione o rifinire superfici concave dove una normale punta cilindrica non riuscirebbe ad accedere, garantendo transizioni fluide e raccordi impeccabili senza intaccare le pareti circostanti.
Tagliente Tipo (Descrizione Taglienti e Materiali)
Composizione: codice/tagliente (esempio: 4333/4)
* Nota: I taglienti tipo /2 e /5 non sono standard e sono fornibili con minimo d'ordine
Codice: 33
Codice: 33
Idoneo per
P
Acciaio Generico
M
Acciaio inossidabile
N
Alluminio e Leghe di alluminio
N
Rame e Leghe di Rame
K
Ghisa
H
Acciai Temprati
S
Superleghe resistenti al calore

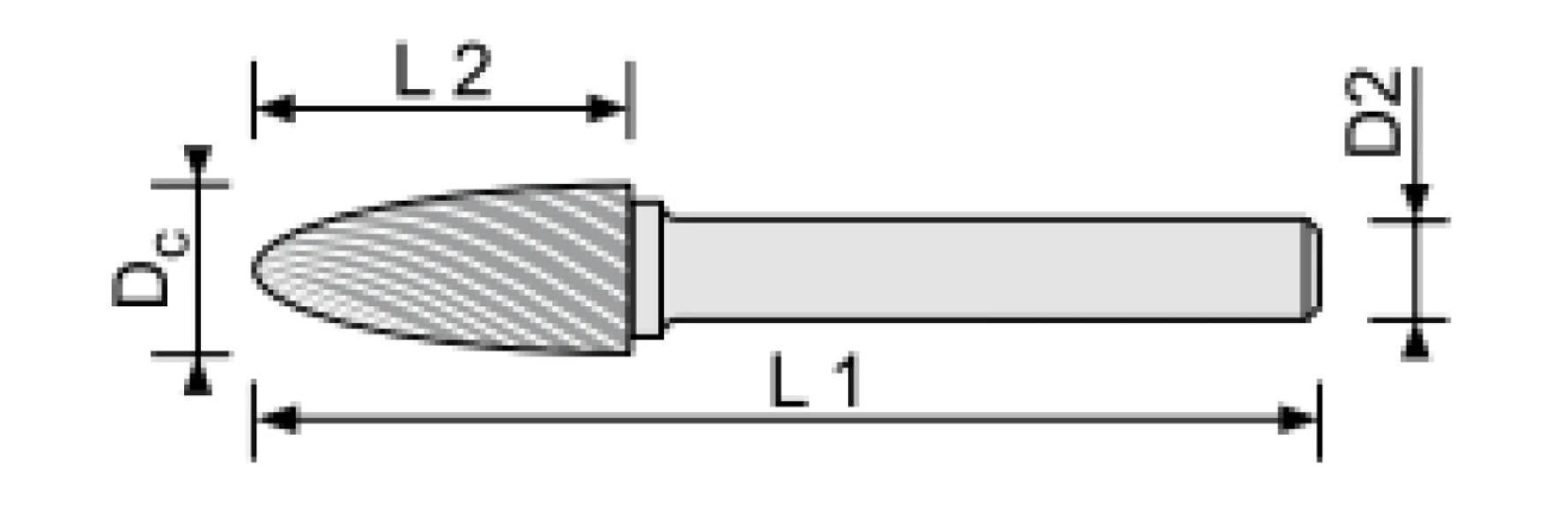

DC
OAL / L1
APMX / L2
| Cod. articolo | Descr. articlo | Tipologia | DC | OAL / L1 | DCON / D2 | APMX / L2 |
|---|---|---|---|---|---|---|
| 330406/1 | Ø4x14x50 ØG.6 R1 RBF | solid | 4.00 | 50.00 | 6.00 | 14.00 |
| 330406/3 | Ø4x14x50 ØG.6 R1 RBF | solid | 4.00 | 50.00 | 6.00 | 14.00 |
| 330406/4 | Ø4x14x50 ØG.6 R1 RBF | solid | 4.00 | 50.00 | 6.00 | 14.00 |
| 330406/6 | Ø4x14x50 ØG.6 R1 RBF | solid | 4.00 | 50.00 | 6.00 | 14.00 |
| 330606/1 | Ø6x18x50 ØG.6 R1.5 RBF | solid | 6.00 | 50.00 | 6.00 | 18.00 |
| 330606/3 | Ø6x18x50 ØG.6 R1.5 RBF | solid | 6.00 | 50.00 | 6.00 | 18.00 |
| 330606/3x100 | Ø6 ØG.6x100 RBF | brazed | 6.00 | 118.00 | 8.00 | 18.00 |
| 330606/3x150 | Ø6 ØG.6x150 RBF | brazed | 6.00 | 168.00 | 8.00 | 18.00 |
| 330606/3X300 | Ø6 ØG.6x300 RBF | brazed | 6.00 | 318.00 | 8.00 | 18.00 |
| 330606/4 | Ø6x18x50 ØG.6 R1.5 RBF | solid | 6.00 | 50.00 | 6.00 | 18.00 |
| 330606/4x100 | Ø6 ØG.6x100 RBF | brazed | 6.00 | 118.00 | 8.00 | 18.00 |
| 330606/4X150 | Ø6 ØG.6x150 RBF | brazed | 6.00 | 168.00 | 6.00 | 18.00 |
| 330606/4X300 | Ø6 ØG.6x300 RBF | brazed | 6.00 | 318.00 | 6.00 | 18.00 |
| 330606/6 | Ø6x18x50 ØG.6 R1.5 RBF | solid | 6.00 | 50.00 | 6.00 | 18.00 |
| 330606/6X100 | Ø6 ØG.6x100 RBF | brazed | 6.00 | 118.00 | 6.00 | 18.00 |
| 330606/6X150 | Ø6 ØG.6x150 RBF | brazed | 6.00 | 168.00 | 6.00 | 18.00 |
| 330606/6X300 | Ø6 ØG.6x300 RBF | brazed | 6.00 | 318.00 | 6.00 | 18.00 |
| 330806/1 | Ø8x20x65 ØG.6 R1.8 RBF | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 330806/3 | Ø8x20x65 ØG.6 R1.8 RBF | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 330806/3x100 | Ø8 ØG.6x100 RBF | brazed | 8.00 | 120.00 | 6.00 | 20.00 |
| 330806/3x150 | Ø8 ØG.6x150 RBF | brazed | 8.00 | 170.00 | 6.00 | 20.00 |
| 330806/3X300 | Ø8 ØG.6x300 RBF | brazed | 8.00 | 320.00 | 6.00 | 20.00 |
| 330806/4 | Ø8x20x65 ØG.6 R1.8 RBF | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 330806/4x100 | Ø8 ØG.6x100 RBF | brazed | 8.00 | 120.00 | 6.00 | 20.00 |
| 330806/4X150 | Ø8 ØG.6x150 RBF | brazed | 8.00 | 170.00 | 6.00 | 20.00 |
| 330806/4X300 | Ø8 ØG.6x300 RBF | brazed | 8.00 | 320.00 | 6.00 | 20.00 |
| 330806/6 | Ø8x20x65 ØG.6 R1.8 RBF | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 330806/6x100 | Ø8 ØG.6x100 RBF | brazed | 8.00 | 120.00 | 6.00 | 20.00 |
| 330806/6x150 | Ø8 ØG.6x150 RBF | brazed | 8.00 | 170.00 | 6.00 | 20.00 |
| 330806/6X300 | Ø8 ØG.6x300 RBF | brazed | 8.00 | 320.00 | 6.00 | 20.00 |
| 331006/1 | Ø10x20x65 ØG.6 R2.5 RBF | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 331006/3 | Ø10x20x65 ØG.6 R2.5 RBF | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 331006/3X100 | Ø10 ØG.6x100 RBF | brazed | 10.00 | 120.00 | 6.00 | 20.00 |
| 331006/3X150 | Ø10 ØG.6x150 RBF | brazed | 10.00 | 170.00 | 6.00 | 20.00 |
| 331006/3X300 | Ø10 ØG.6x300 RBF | brazed | 10.00 | 320.00 | 6.00 | 20.00 |
| 331006/4 | Ø10x20x65 ØG.6 R2.5 RBF | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 331006/4X100 | Ø10 ØG.6x100 RBF | brazed | 10.00 | 120.00 | 6.00 | 20.00 |
| 331006/4X150 | Ø10 ØG.6x150 RBF | brazed | 10.00 | 170.00 | 6.00 | 20.00 |
| 331006/4X300 | Ø10 ØG.6x300 RBF | brazed | 10.00 | 320.00 | 8.00 | 20.00 |
| 331006/6 | Ø10x20x65 ØG.6 R2.5 RBF | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 331006/6x100 | Ø10 ØG.6x100 RBF | brazed | 10.00 | 120.00 | 8.00 | 20.00 |
| 331006/6X150 | Ø10 ØG.6x150 RBF | brazed | 10.00 | 170.00 | 8.00 | 20.00 |
| 331006/6X300 | Ø10 ØG.6x300 RBF | brazed | 10.00 | 320.00 | 8.00 | 20.00 |
| 331206/1 | Ø12x25x70 ØG.6 R2.5 RBF | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 331206/3 | Ø12x25x70 ØG.6 R2.5 RBF | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 331206/3x100 | Ø12 ØG.6x100 RBF | brazed | 12.00 | 125.00 | 8.00 | 25.00 |
| 331206/3x150 | Ø12 ØG.6x150 RBF | brazed | 12.00 | 175.00 | 8.00 | 25.00 |
| 331206/3X300 | Ø12 ØG.6x300 RBF | brazed | 12.00 | 325.00 | 8.00 | 25.00 |
| 331206/4 | Ø12x25x70 ØG.6 R2.5 RBF | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 331206/4X100 | Ø12 ØG.6x100 RBF | brazed | 12.00 | 125.00 | 8.00 | 25.00 |
| 331206/4X150 | Ø12 ØG.6x150 RBF | brazed | 12.00 | 175.00 | 8.00 | 25.00 |
| 331206/4X300 | Ø12 ØG.6x300 RBF | brazed | 12.00 | 325.00 | 8.00 | 25.00 |
| 331206/6 | Ø12x25x70 ØG.6 R2.5 RBF | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 331206/6x100 | Ø12 ØG.6x100 RBF | brazed | 12.00 | 125.00 | 6.00 | 25.00 |
| 331206/6X150 | Ø12 ØG.6x150 RBF | brazed | 12.00 | 175.00 | 6.00 | 25.00 |
| 331206/6X300 | Ø12 ØG.6x300 RBF | brazed | 12.00 | 325.00 | 6.00 | 25.00 |
| 331606/1 | Ø16x30x75 ØG.6 R3.6 RBF | brazed | 16.00 | 75.00 | 6.00 | 30.00 |
| 331606/3 | Ø16x30x75 ØG.6 R3.6 RBF | brazed | 16.00 | 75.00 | 6.00 | 30.00 |
| 331606/3x100 | Ø16 ØG.6x100 RBF | brazed | 16.00 | 130.00 | 6.00 | 30.00 |
| 331606/3x150 | Ø16 ØG.6x150 RBF | brazed | 16.00 | 180.00 | 6.00 | 30.00 |
| 331606/3X300 | Ø16 ØG.6x300 RBF | brazed | 16.00 | 330.00 | 6.00 | 30.00 |
| 331606/4 | Ø16x30x75 ØG.6 R3.6 RBF | brazed | 16.00 | 75.00 | 6.00 | 30.00 |
| 331606/4x100 | Ø16 ØG.6x100 RBF | brazed | 16.00 | 130.00 | 6.00 | 30.00 |
| 331606/4x150 | Ø16 ØG.6x150 RBF | brazed | 16.00 | 180.00 | 6.00 | 30.00 |
| 331606/4X300 | Ø16 ØG.6x300 RBF | brazed | 16.00 | 330.00 | 6.00 | 30.00 |
| 331606/6 | Ø16x30x75 ØG.6 R3.6 RBF | brazed | 16.00 | 75.00 | 6.00 | 30.00 |
| 331606/6X100 | Ø16 ØG.6x100 RBF | brazed | 16.00 | 130.00 | 6.00 | 30.00 |
| 331606/6x150 | Ø16 ØG.6x150 RBF | brazed | 16.00 | 180.00 | 6.00 | 30.00 |
| 331606/6X300 | Ø16 ØG.6x300 RBF | brazed | 16.00 | 330.00 | 6.00 | 30.00 |
| 331608/1 | Ø16x30x75 ØG.8 R3.6 RBF | brazed | 16.00 | 75.00 | 8.00 | 30.00 |
| 331608/3 | Ø16x30x75 ØG.8 R3.6 RBF | brazed | 16.00 | 75.00 | 8.00 | 30.00 |
| 331608/3x100 | Ø16 ØG.8x100 RBF | brazed | 16.00 | 130.00 | 6.00 | 30.00 |
| 331608/3x150 | Ø16 ØG.8x150 RBF | brazed | 16.00 | 180.00 | 6.00 | 30.00 |
| 331608/3X300 | Ø16 ØG.8x300 RBF | brazed | 16.00 | 330.00 | 6.00 | 30.00 |
| 331608/4 | Ø16x30x75 ØG.8 R3.6 RBF | brazed | 16.00 | 75.00 | 8.00 | 30.00 |
| 331608/4x100 | Ø16 ØG.8x100 RBF | brazed | 16.00 | 130.00 | 8.00 | 30.00 |
| 331608/4x150 | Ø16 ØG.8x150 RBF | brazed | 16.00 | 180.00 | 8.00 | 30.00 |
| 331608/4X300 | Ø16 ØG.8x300 RBF | brazed | 16.00 | 330.00 | 6.00 | 30.00 |
| 331608/6 | Ø16x30x75 ØG.8 R3.6 RBF | brazed | 16.00 | 75.00 | 8.00 | 30.00 |
| 331608/6x100 | Ø16 ØG.8x100 RBF | brazed | 16.00 | 130.00 | 6.00 | 30.00 |
| 331608/6x150 | Ø16 ØG.8x150 RBF | brazed | 16.00 | 180.00 | 6.00 | 30.00 |
| 331608/6X300 | Ø16 ØG.8x300 RBF | brazed | 16.00 | 330.00 | 6.00 | 30.00 |
| 332006/1 | Ø20x35x80 ØG.6 R5 RBF | brazed | 20.00 | 80.00 | 6.00 | 35.00 |
| 332006/3 | Ø20x35x80 ØG.6 R5 RBF | brazed | 20.00 | 80.00 | 6.00 | 35.00 |
| 332006/3x100 | Ø20 ØG.6x100 RBF | brazed | 20.00 | 135.00 | 8.00 | 35.00 |
| 332006/3x150 | Ø20 ØG.6x150 RBF | brazed | 20.00 | 185.00 | 6.00 | 35.00 |
| 332006/3X300 | Ø20 ØG.6x300 RBF | brazed | 20.00 | 335.00 | 6.00 | 35.00 |
| 332006/4 | Ø20x35x80 ØG.6 R5 RBF | brazed | 20.00 | 80.00 | 6.00 | 35.00 |
| 332006/4x100 | Ø20 ØG.6x100 RBF | brazed | 20.00 | 135.00 | 6.00 | 35.00 |
| 332006/4x150 | Ø20 ØG.6x150 RBF | brazed | 20.00 | 185.00 | 6.00 | 35.00 |
| 332006/4X300 | Ø20 ØG.6x300 RBF | brazed | 20.00 | 335.00 | 6.00 | 35.00 |
| 332006/6 | Ø20x35x80 ØG.6 R5 RBF | brazed | 20.00 | 80.00 | 6.00 | 35.00 |
| 332006/6x100 | Ø20 ØG.6x100 RBF | brazed | 20.00 | 135.00 | 8.00 | 35.00 |
| 332006/6x150 | Ø20 ØG.6x150 RBF | brazed | 20.00 | 185.00 | 8.00 | 35.00 |
| 332006/6X300 | Ø20 ØG.6x300 RBF | brazed | 20.00 | 335.00 | 8.00 | 35.00 |
| 332008/1 | Ø20x35x80 ØG.8 R5 RBF | brazed | 20.00 | 80.00 | 8.00 | 35.00 |
| 332008/3 | Ø20x35x80 ØG.8 R5 RBF | brazed | 20.00 | 80.00 | 8.00 | 35.00 |
| 332008/3x100 | Ø20 ØG.8x100 RBF | brazed | 20.00 | 135.00 | 6.00 | 35.00 |
| 332008/3x150 | Ø20 ØG.8x150 RBF | brazed | 20.00 | 185.00 | 6.00 | 35.00 |
| 332008/3X300 | Ø20 ØG.8x300 RBF | brazed | 20.00 | 335.00 | 6.00 | 35.00 |
| 332008/4 | Ø20x35x80 ØG.8 R5 RBF | brazed | 20.00 | 80.00 | 8.00 | 35.00 |
| 332008/4x100 | Ø20 ØG.8x100 RBF | brazed | 20.00 | 135.00 | 6.00 | 35.00 |
| 332008/4x150 | Ø20 ØG.8x150 RBF | brazed | 20.00 | 185.00 | 6.00 | 35.00 |
| 332008/4X300 | Ø20 ØG.8x300 RBF | brazed | 20.00 | 335.00 | 6.00 | 35.00 |
| 332008/6 | Ø20x35x80 ØG.8 R5 RBF | brazed | 20.00 | 80.00 | 8.00 | 35.00 |
| 332008/6x100 | Ø20 ØG.8x100 RBF | brazed | 20.00 | 135.00 | 6.00 | 35.00 |
| 332008/6x150 | Ø20 ØG.8x150 RBF | brazed | 20.00 | 185.00 | 6.00 | 35.00 |
| 332008/6X300 | Ø20 ØG.8x300 RBF | brazed | 20.00 | 335.00 | 6.00 | 35.00 |
| 4333/3 | Ø3x13x40 ØG.3 R0.8 RBF | solid | 3.00 | 40.00 | 3.00 | 13.00 |
| 4333/4 | Ø3x13x40 ØG.3 R0.8 RBF | solid | 3.00 | 40.00 | 3.00 | 13.00 |
| 4333/6 | Ø3x13x40 ØG.3 R0.8 RBF | solid | 3.00 | 40.00 | 3.00 | 13.00 |
| 4343/3 | Ø4x10x45 ØG.3 R1 RBF | brazed | 4.00 | 45.00 | 3.00 | 10.00 |
| 4343/4 | Ø4x10x45 ØG.3 R1 RBF | brazed | 4.00 | 45.00 | 3.00 | 10.00 |
| 4343/6 | Ø4x10x45 ØG.3 R1 RBF | brazed | 4.00 | 45.00 | 3.00 | 10.00 |
| 4353/3 | Ø5x12x47 ØG.3 R1.2 RBF | brazed | 5.00 | 47.00 | 3.00 | 12.00 |
| 4353/4 | Ø5x12x47 ØG.3 R1.2 RBF | brazed | 5.00 | 47.00 | 3.00 | 12.00 |
| 4353/6 | Ø5x12x47 ØG.3 R1.2 RBF | brazed | 5.00 | 47.00 | 3.00 | 12.00 |
| 4363/3 | Ø6x13x48 ØG.3 R1.4 RBF | brazed | 6.00 | 48.00 | 3.00 | 13.00 |
| 4363/4 | Ø6x13x48 ØG.3 R1.4 RBF | brazed | 6.00 | 48.00 | 3.00 | 13.00 |
| 4363/6 | Ø6x13x48 ØG.3 R1.4 RBF | brazed | 6.00 | 48.00 | 3.00 | 13.00 |
