KUD - Sferica

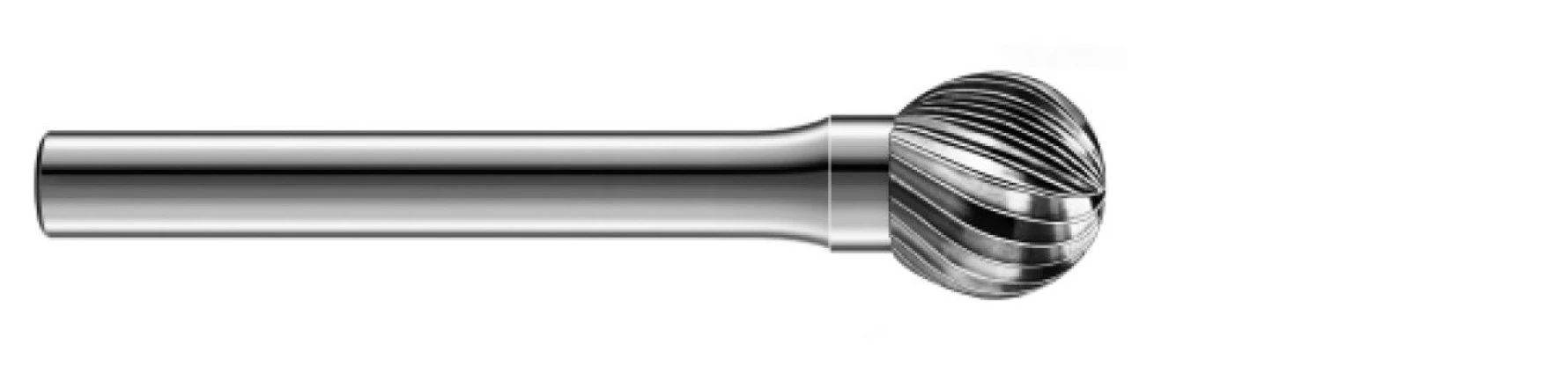

La lima rotativa Forma KUD (sferica) è l'utensile definitivo per la lavorazione di profili interni curvi e la svuotatura di cavità emisferiche. La sua geometria perfettamente globulare permette di asportare materiale in ogni direzione con il massimo controllo, rendendola ideale per incidere, rifinire raccordi concavi e sagomare contorni complessi senza creare spigoli vivi. Massima versatilità in un formato ultra-compatto.
Tagliente Tipo (Descrizione Taglienti e Materiali)
Composizione: codice/tagliente (esempio: 4833/4)
* Nota: I taglienti tipo /2 e /5 non sono standard e sono fornibili con minimo d'ordine
Codice: 38
Codice: 38
Idoneo per
P
Acciaio Generico
M
Acciaio inossidabile
N
Alluminio e Leghe di alluminio
N
Rame e Leghe di Rame
K
Ghisa
H
Acciai Temprati
S
Superleghe resistenti al calore
DC

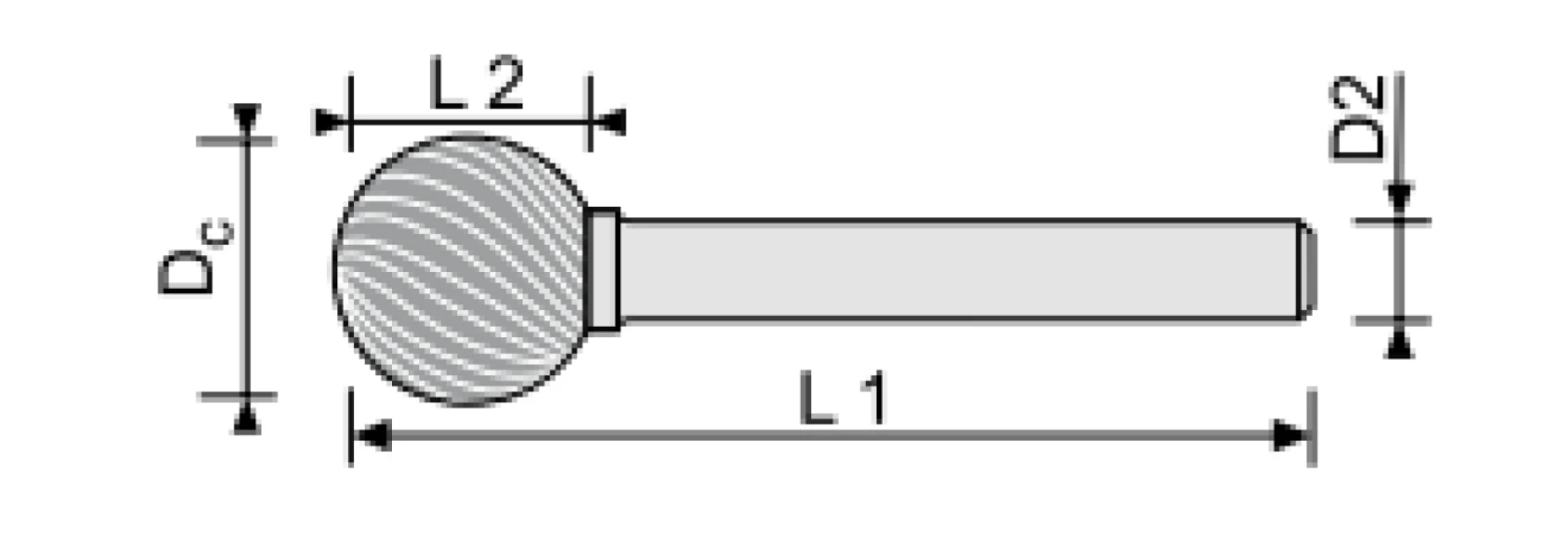

OAL / L1
APMX / L2
| Cod. articolo | Descr. articlo | Tipologia | DC | OAL / L1 | DCON / D2 | APMX / L2 |
|---|---|---|---|---|---|---|
| 380406/1 | Ø4x3.6x50 ØG.6 KUD | solid | 4.00 | 50.00 | 6.00 | 3.50 |
| 380406/3 | Ø4x3.6x50 ØG.6 KUD | solid | 4.00 | 50.00 | 6.00 | 3.60 |
| 380406/4 | Ø4x3.6x50 ØG.6 KUD | solid | 4.00 | 50.00 | 6.00 | 3.60 |
| 380406/6 | Ø4x3.6x50 ØG.6 KUD | solid | 4.00 | 50.00 | 6.00 | 3.50 |
| 380606/1 | Ø6x5x50 ØG.6 KUD | solid | 6.00 | 50.00 | 6.00 | 5.00 |
| 380606/3 | Ø6x5x50 ØG.6 KUD | solid | 6.00 | 50.00 | 6.00 | 5.00 |
| 380606/3x100 | Ø6 ØG.6x100 KUD | brazed | 6.00 | 105.40 | 6.00 | 5.40 |
| 380606/3X150 | Ø6 ØG.6x150 KUD | brazed | 6.00 | 155.40 | 6.00 | 5.40 |
| 380606/3X300 | Ø6 ØG.6x300 KUD | brazed | 6.00 | 305.40 | 6.00 | 5.40 |
| 380606/4 | Ø6x5x50 ØG.6 KUD | solid | 6.00 | 50.00 | 6.00 | 5.00 |
| 380606/4X100 | Ø6 ØG.6x100 KUD | brazed | 6.00 | 105.40 | 6.00 | 5.40 |
| 380606/4X150 | Ø6 ØG.6x150 KUD | brazed | 6.00 | 155.40 | 6.00 | 5.40 |
| 380606/4X300 | Ø6 ØG.6x300 KUD | brazed | 6.00 | 305.40 | 6.00 | 5.40 |
| 380606/6 | Ø6x5x50 ØG.6 KUD | solid | 6.00 | 50.00 | 6.00 | 5.00 |
| 380606/6x100 | Ø6 ØG.6x100 KUD | brazed | 6.00 | 105.40 | 6.00 | 5.40 |
| 380606/6X150 | Ø6 ØG.6x150 KUD | brazed | 6.00 | 155.40 | 6.00 | 5.40 |
| 380606/6X300 | Ø6 ØG.6x300 KUD | brazed | 6.00 | 305.40 | 6.00 | 5.40 |
| 380806/1 | Ø8x7.2x52.2 ØG.6 KUD | brazed | 8.00 | 52.00 | 6.00 | 7.00 |
| 380806/3 | Ø8x7.2x52.2 ØG.6 KUD | brazed | 8.00 | 52.20 | 6.00 | 7.20 |
| 380806/3X100 | Ø8 ØG.6x100 KUD | brazed | 8.00 | 107.20 | 6.00 | 7.20 |
| 380806/3X150 | Ø8 ØG.6x150 KUD | brazed | 8.00 | 157.20 | 6.00 | 7.20 |
| 380806/3X300 | Ø8 ØG.6x300 KUD | brazed | 8.00 | 307.20 | 6.00 | 7.20 |
| 380806/4 | Ø8x7.2x52.2 ØG.6 KUD | brazed | 8.00 | 52.20 | 6.00 | 7.20 |
| 380806/4x100 | Ø8 ØG.6x100 KUD | brazed | 8.00 | 107.20 | 6.00 | 7.20 |
| 380806/4X150 | Ø8 ØG.6x150 KUD | brazed | 8.00 | 157.20 | 6.00 | 7.20 |
| 380806/4X300 | Ø8 ØG.6x300 KUD | brazed | 8.00 | 307.20 | 6.00 | 7.20 |
| 380806/6 | Ø8x7.2x52.2 ØG.6 KUD | brazed | 8.00 | 52.00 | 6.00 | 7.00 |
| 380806/6X100 | Ø8 ØG.6x100 KUD | brazed | 8.00 | 107.20 | 6.00 | 7.20 |
| 380806/6X150 | Ø8 ØG.6x150 KUD | brazed | 8.00 | 157.20 | 6.00 | 7.20 |
| 380806/6X300 | Ø8 ØG.6x300 KUD | brazed | 8.00 | 307.20 | 6.00 | 7.20 |
| 381006/1 | Ø10x9x54 ØG.6 KUD | brazed | 10.00 | 54.00 | 6.00 | 9.00 |
| 381006/3 | Ø10x9x54 ØG.6 KUD | brazed | 10.00 | 54.00 | 6.00 | 9.00 |
| 381006/3X100 | Ø10 ØG.6x100 KUD | brazed | 10.00 | 109.00 | 6.00 | 9.00 |
| 381006/3X150 | Ø10 ØG.6x150 KUD | brazed | 10.00 | 159.00 | 6.00 | 9.00 |
| 381006/3X300 | Ø10 ØG.6x300 KUD | brazed | 10.00 | 309.00 | 6.00 | 9.00 |
| 381006/4 | Ø10x9x54 ØG.6 KUD | brazed | 10.00 | 54.00 | 6.00 | 9.00 |
| 381006/4x100 | Ø10 ØG.6x100 KUD | brazed | 10.00 | 109.00 | 6.00 | 9.00 |
| 381006/4X150 | Ø10 ØG.6x150 KUD | brazed | 10.00 | 159.00 | 6.00 | 9.00 |
| 381006/4X300 | Ø10 ØG.6x300 KUD | brazed | 10.00 | 309.00 | 6.00 | 9.00 |
| 381006/6 | Ø10x9x54 ØG.6 KUD | brazed | 10.00 | 54.00 | 6.00 | 9.00 |
| 381006/6x100 | Ø10 ØG.6x100 KUD | brazed | 10.00 | 109.00 | 6.00 | 9.00 |
| 381006/6X150 | Ø10 ØG.6x150 KUD | brazed | 10.00 | 159.00 | 6.00 | 9.00 |
| 381006/6X300 | Ø10 ØG.6x300 KUD | brazed | 10.00 | 309.00 | 6.00 | 9.00 |
| 381206/1 | Ø12x10.8x55.8 ØG.6 KUD | brazed | 12.00 | 55.80 | 6.00 | 10.80 |
| 381206/3 | Ø12x10.8x55.8 ØG.6 KUD | brazed | 12.00 | 55.80 | 6.00 | 10.80 |
| 381206/3X100 | Ø12 ØG.6x100 KUD | brazed | 12.00 | 110.80 | 6.00 | 10.80 |
| 381206/3X150 | Ø12 ØG.6x150 KUD | brazed | 12.00 | 160.80 | 6.00 | 10.80 |
| 381206/3X300 | Ø12 ØG.6x300 KUD | brazed | 12.00 | 310.80 | 6.00 | 10.80 |
| 381206/4 | Ø12x10.8x55.8 ØG.6 KUD | brazed | 12.00 | 55.00 | 6.00 | 10.80 |
| 381206/4x100 | Ø12 ØG.6x100 KUD | brazed | 12.00 | 110.80 | 6.00 | 10.80 |
| 381206/4X150 | Ø12 ØG.6x150 KUD | brazed | 12.00 | 160.80 | 6.00 | 10.80 |
| 381206/4X300 | Ø12 ØG.6x300 KUD | brazed | 12.00 | 310.80 | 6.00 | 10.80 |
| 381206/6 | Ø12x10.8x55.8 ØG.6 KUD | brazed | 12.00 | 56.00 | 6.00 | 11.00 |
| 381206/6x100 | Ø12 ØG.6x100 KUD | brazed | 12.00 | 110.80 | 6.00 | 10.80 |
| 381206/6X150 | Ø12 ØG.6x150 KUD | brazed | 12.00 | 160.80 | 6.00 | 10.80 |
| 381206/6X300 | Ø12 ØG.6x300 KUD | brazed | 21.00 | 310.80 | 6.00 | 10.80 |
| 381606/1 | Ø16x14.4x59.4 ØG.6 KUD | brazed | 16.00 | 59.40 | 6.00 | 14.40 |
| 381606/3 | Ø16x14.4x59.4 ØG.6 KUD | brazed | 16.00 | 59.40 | 6.00 | 14.40 |
| 381606/3x100 | Ø16 ØG.6x100 KUD | brazed | 16.00 | 114.40 | 6.00 | 14.40 |
| 381606/3X150 | Ø16 ØG.6x150 KUD | brazed | 16.00 | 164.40 | 6.00 | 14.40 |
| 381606/3X300 | Ø16 ØG.6x300 KUD | brazed | 16.00 | 314.40 | 6.00 | 14.40 |
| 381606/4 | Ø16x14.4x59.4 ØG.6 KUD | brazed | 16.00 | 59.40 | 6.00 | 14.40 |
| 381606/4x100 | Ø16 ØG.6x100 KUD | brazed | 16.00 | 114.40 | 6.00 | 14.40 |
| 381606/4X150 | Ø16 ØG.6x150 KUD | brazed | 16.00 | 164.40 | 6.00 | 14.40 |
| 381606/4X300 | Ø16 ØG.6x300 KUD | brazed | 16.00 | 314.40 | 6.00 | 14.40 |
| 381606/6 | Ø16x14.4x59.4 ØG.6 KUD | brazed | 16.00 | 60.00 | 6.00 | 15.00 |
| 381606/6X100 | Ø16 ØG.6x100 KUD | brazed | 16.00 | 114.40 | 6.00 | 14.40 |
| 381606/6X150 | Ø16 ØG.6x150 KUD | brazed | 16.00 | 164.40 | 6.00 | 14.40 |
| 381606/6X300 | Ø16 ØG.6x300 KUD | brazed | 16.00 | 314.40 | 6.00 | 14.40 |
| 381608/1 | Ø16x14.4x59.4 ØG.8 KUD | brazed | 16.00 | 59.40 | 8.00 | 14.40 |
| 381608/3 | Ø16x14.4x59.4 ØG.8 KUD | brazed | 16.00 | 59.40 | 8.00 | 14.40 |
| 381608/3X100 | Ø16 ØG.8x100 KUD | brazed | 16.00 | 114.40 | 8.00 | 14.40 |
| 381608/3X150 | Ø16 ØG.8x150 KUD | brazed | 16.00 | 164.40 | 8.00 | 14.40 |
| 381608/3X300 | Ø16 ØG.8x300 KUD | brazed | 16.00 | 314.40 | 8.00 | 14.40 |
| 381608/4 | Ø16x14.4x59.4 ØG.8 KUD | brazed | 16.00 | 59.40 | 8.00 | 14.40 |
| 381608/4x100 | Ø16 ØG.8x100 KUD | brazed | 16.00 | 114.40 | 8.00 | 14.40 |
| 381608/4X150 | Ø16 ØG.8x150 KUD | brazed | 16.00 | 164.40 | 8.00 | 14.40 |
| 381608/4X300 | Ø16 ØG.8x300 KUD | brazed | 16.00 | 314.40 | 8.00 | 14.40 |
| 381608/6 | Ø16x14.4x59.4 ØG.8 KUD | brazed | 16.00 | 60.00 | 8.00 | 15.00 |
| 381608/6x100 | Ø16 ØG.8x100 KUD | brazed | 16.00 | 114.40 | 8.00 | 14.40 |
| 381608/6X150 | Ø16 ØG.8x150 KUD | brazed | 16.00 | 164.40 | 8.00 | 14.40 |
| 381608/6X300 | Ø16 ØG.8x300 KUD | brazed | 16.00 | 314.40 | 8.00 | 14.40 |
| 382006/1 | Ø20x18x63 ØG.6 KUD | brazed | 20.00 | 63.00 | 6.00 | 18.00 |
| 382006/3 | Ø20x18x63 ØG.6 KUD | brazed | 20.00 | 63.00 | 6.00 | 18.00 |
| 382006/3x100 | Ø20 ØG.6x100 KUD | brazed | 20.00 | 118.00 | 6.00 | 18.00 |
| 382006/3X150 | Ø20 ØG.6x150 KUD | brazed | 20.00 | 168.00 | 6.00 | 18.00 |
| 382006/3X300 | Ø20 ØG.6x300 KUD | brazed | 20.00 | 318.00 | 6.00 | 18.00 |
| 382006/4 | Ø20x18x63 ØG.6 KUD | brazed | 20.00 | 63.00 | 6.00 | 18.00 |
| 382006/4x100 | Ø20 ØG.6x100 KUD | brazed | 20.00 | 118.00 | 6.00 | 18.00 |
| 382006/4X150 | Ø20 ØG.6x150 KUD | brazed | 20.00 | 168.00 | 6.00 | 18.00 |
| 382006/4X300 | Ø20 ØG.6x300 KUD | brazed | 20.00 | 318.00 | 6.00 | 18.00 |
| 382006/6 | Ø20x18x63 ØG.6 KUD | brazed | 20.00 | 63.00 | 6.00 | 18.00 |
| 382006/6x100 | Ø20 ØG.6x100 KUD | brazed | 20.00 | 118.00 | 6.00 | 18.00 |
| 382006/6X150 | Ø20 ØG.6x150 KUD | brazed | 20.00 | 168.00 | 6.00 | 18.00 |
| 382006/6X300 | Ø20 ØG.6x300 KUD | brazed | 20.00 | 318.00 | 6.00 | 18.00 |
| 382008/1 | Ø20x18x63 ØG.8 KUD | brazed | 20.00 | 63.00 | 8.00 | 18.00 |
| 382008/3 | Ø20x18x63 ØG.8 KUD | brazed | 20.00 | 63.00 | 8.00 | 18.00 |
| 382008/3x100 | Ø20 ØG.8x100 KUD | brazed | 20.00 | 118.00 | 8.00 | 18.00 |
| 382008/3X150 | Ø20 ØG.8x150 KUD | brazed | 20.00 | 168.00 | 8.00 | 18.00 |
| 382008/3X300 | Ø20 ØG.8x300 KUD | brazed | 20.00 | 318.00 | 8.00 | 18.00 |
| 382008/4 | Ø20x18x63 ØG.8 KUD | brazed | 20.00 | 63.00 | 8.00 | 18.00 |
| 382008/4x100 | Ø20 ØG.8x100 KUD | brazed | 20.00 | 118.00 | 8.00 | 18.00 |
| 382008/4X150 | Ø20 ØG.8x150 KUD | brazed | 20.00 | 168.00 | 8.00 | 18.00 |
| 382008/4X300 | Ø20 ØG.8x300 KUD | brazed | 20.00 | 318.00 | 8.00 | 18.00 |
| 382008/6 | Ø20x18x63 ØG.8 KUD | brazed | 20.00 | 63.00 | 8.00 | 18.00 |
| 382008/6x100 | Ø20 ØG.8x100 KUD | brazed | 20.00 | 118.00 | 8.00 | 18.00 |
| 382008/6X150 | Ø20 ØG.8x150 KUD | brazed | 20.00 | 168.00 | 8.00 | 18.00 |
| 382008/6X300 | Ø20 ØG.8x300 KUD | brazed | 20.00 | 318.00 | 8.00 | 18.00 |
| 4815/3 | Ø1.5x1.35x40 ØG.3 KUD | solid | 1.50 | 40.00 | 3.00 | 1.35 |
| 4815/4 | Ø1.5x1.35x40 ØG.3 KUD | solid | 1.50 | 40.00 | 3.00 | 1.35 |
| 4815/6 | Ø1.5x1.35x40 ØG.3 KUD | solid | 1.50 | 40.00 | 3.00 | 1.35 |
| 4820/3 | Ø2x1.8x40 ØG.3 KUD | solid | 2.00 | 40.00 | 3.00 | 1.80 |
| 4820/4 | Ø2x1.8x40 ØG.3 KUD | solid | 2.00 | 40.00 | 3.00 | 1.80 |
| 4820/6 | Ø2x1.8x40 ØG.3 KUD | solid | 2.00 | 40.00 | 3.00 | 1.80 |
| 4825/3 | Ø2.5x2.2x40 ØG.3 KUD | solid | 2.50 | 40.00 | 3.00 | 2.20 |
| 4825/4 | Ø2.5x2.2x40 ØG.3 KUD | solid | 2.50 | 40.00 | 3.00 | 2.20 |
| 4825/6 | Ø2.5x2.2x40 ØG.3 KUD | solid | 2.50 | 40.00 | 3.00 | 2.20 |
| 4833/3 | Ø3x2.7x40 ØG.3 KUD | solid | 3.00 | 40.00 | 3.00 | 2.70 |
| 4833/4 | Ø3x2.7x40 ØG.3 KUD | solid | 3.00 | 40.00 | 3.00 | 2.70 |
| 4833/6 | Ø3x2.7x40 ØG.3 KUD | solid | 3.00 | 40.00 | 3.00 | 2.70 |
| 4843/3 | Ø4x3.6x38.5 ØG.3 KUD | brazed | 4.00 | 38.50 | 3.00 | 3.60 |
| 4843/4 | Ø4x3.6x38.5 ØG.3 KUD | brazed | 4.00 | 38.50 | 3.00 | 3.60 |
| 4843/6 | Ø4x3.6x38.5 ØG.3 KUD | brazed | 4.00 | 38.50 | 3.00 | 3.60 |
| 4853/3 | Ø5x4.5x39.5 ØG.3 KUD | brazed | 5.00 | 39.50 | 3.00 | 4.50 |
| 4853/4 | Ø5x4.5x39.5 ØG.3 KUD | brazed | 5.00 | 39.50 | 3.00 | 4.50 |
| 4853/6 | Ø5x4.5x39.5 ØG.3 KUD | brazed | 5.00 | 39.50 | 3.00 | 4.50 |
| 4863/3 | Ø6x5.4x40.4 ØG.3 KUD | brazed | 6.00 | 40.40 | 3.00 | 5.40 |
| 4863/4 | Ø6x5.4x40.4 ØG.3 KUD | brazed | 6.00 | 40.40 | 3.00 | 5.40 |
| 4863/6 | Ø6x5.4x40.4 ØG.3 KUD | brazed | 6.00 | 40.40 | 3.00 | 5.40 |
